Connectors for furniture and timber assembly.
Brass through-bore connector caps with hex drive and decorative domed head.
Available in plain brass, nickel plate and antique bronze.
Indicated sizes also available in stainless steel grade 1.4305.
Please contact us for price and stock information.

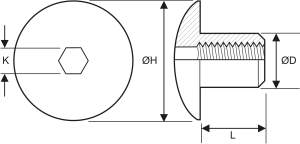

| Thread Size | Available Lengths (L) | ØH | ØD | K |
|---|---|---|---|---|
| M6 | 9 | 13.0 | 8.0 | 5 |
| M6 | 10* | 15.0 | 9.0 | 5 |
| M6 | 10 / 15* | 20.0 | 9.0 | 5 |
| M8 | 11.5 | 17.0 | 10.0 | 5 |
| M8 | 10 / 15** | 20.0 | 10.0 | 5 |
| M8 | 18 | 30.0 | 14.0 | 5 |
| M10 | 10 | 25.0 | 14.0 | 5 |
| M10 | 18 | 30.0 | 14.0 | 5 |
| M10 | 18** | 25.0 | 14.0 | 5 |
| M12 | 18*** | 30.0 | 16.0 | 8 |
