Brass Threaded Inserts

Threaded inserts made from high quality CZ121/CW614N brass to give high tensile strength, excellent resistance to corrosion and good electrical conductivity.

Press-in Inserts

press in inserts press in inserts

Available with or without head and suitable for heated or cold press-in installation into plastics.

Imperial thread sizes and studded versions also available.

Please contact us for prices and stock information.

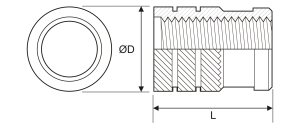

Press-in Inserts
All dimensions in mm.
Pilot hole dimensions are for reference purposes only.
Thread
Size
Length
(L)
ØH ØD T Pilot Hole
M2 4.0 4.8 3.35 0.6 3.1
M2.5 5.3 5.6 4.4 0.6 3.8
M3 5.3 5.6 4.2 0.6 4.2
M3.5 6.3 6.4 5.0 0.8 4.6
M4 7.4 7.2 5.8 0.8 5.4
M5 8.3 8.0 6.6 1.0 6.2
M6 9.2 9.5 8.2 1.3 7.8
M8 9.2 11.0 9.7 1.3 9.3
M10 9.2 14.0 12.0 1.6 11.6
